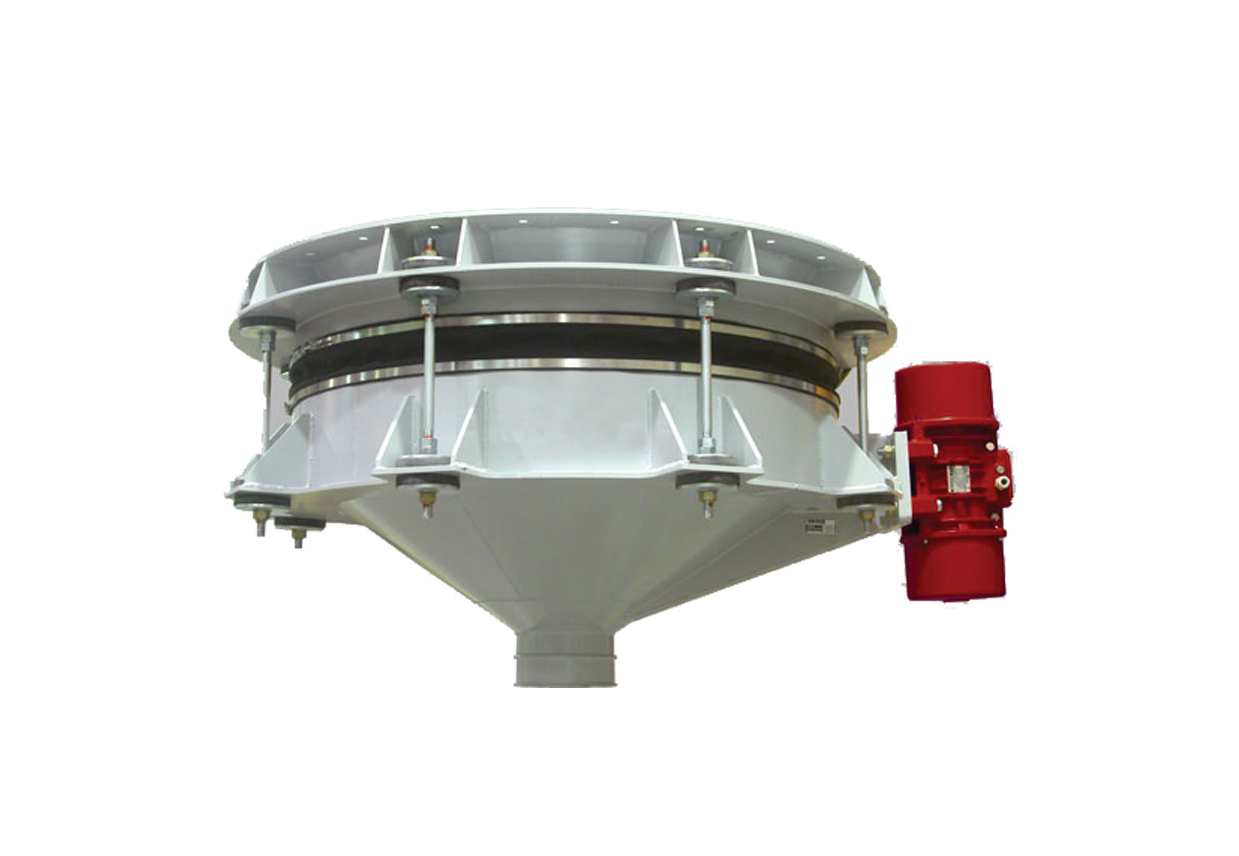

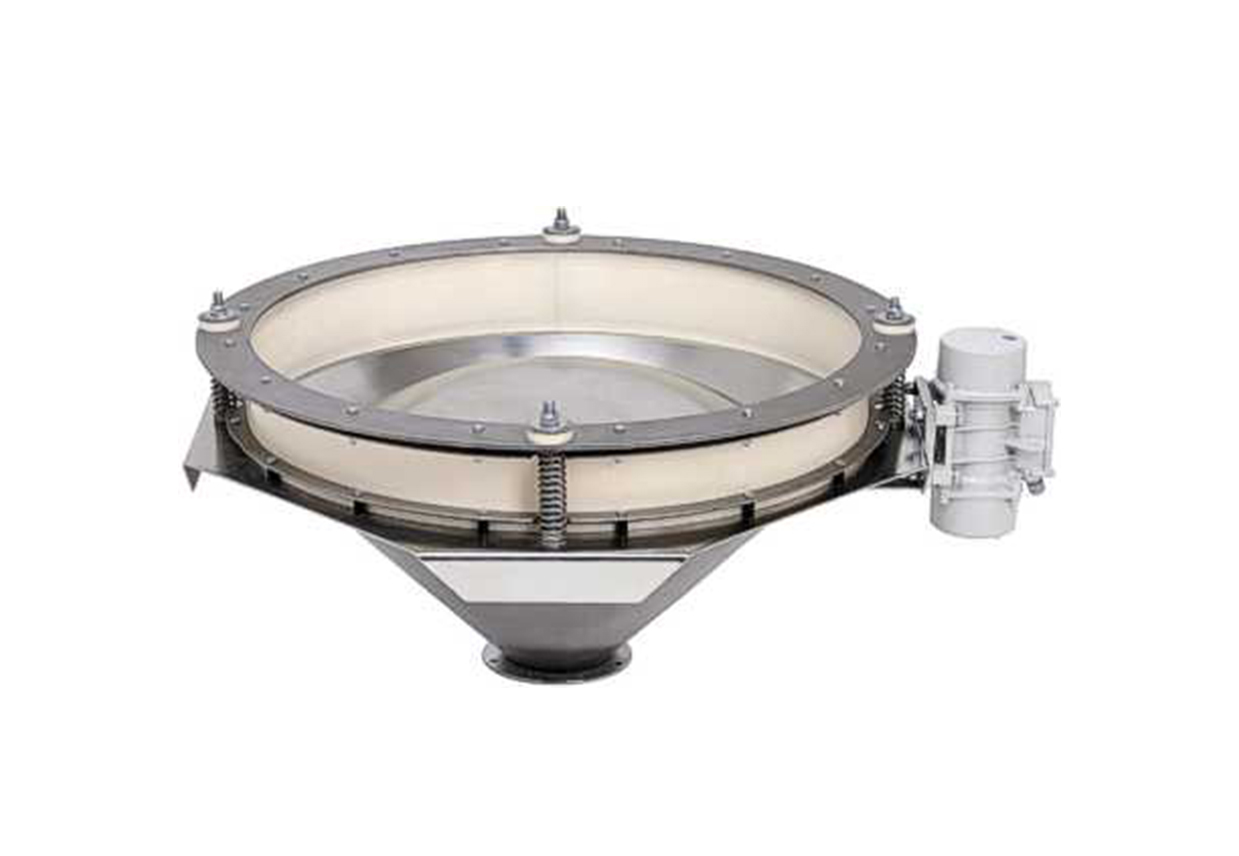

빈 엑티베이터 - BIN ACTIVATOR
Model Details

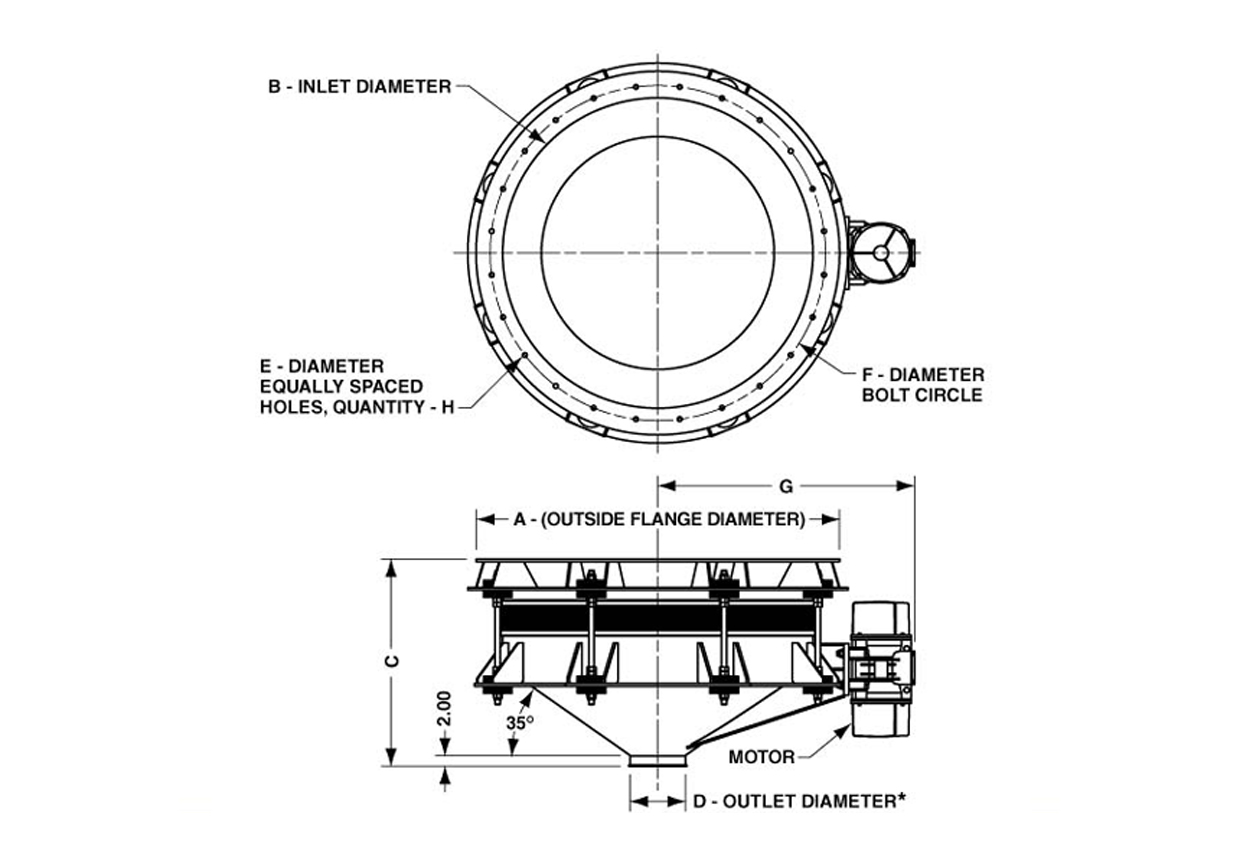

Model Dimension Touch slide
| MODEL | Bin Activating Feeder and Discharger Dimensions in inches (mm) | Apprix. Ship Weight Lbs(kg) |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D* | E | F | G | H | Motor HP** | ||
| DHB-180 | 24 (610) | 18 (457) | 17 (432) | 6 (152) | 0.63 (16) | 21 (533) | 20 (508) | 12 | 1/2 | 240 (109) |
| DHB-240 | 30 (762) | 24 (610) | 18 (457) | 6 (152) | 0.63 (16) | 27 (686) | 23 (584) | 15 | 1/2 | 400 (181) |
| DHB-300 | 36 (914) | 30 (762) | 20 (508) | 6 (152) | 0.63 (16) | 33 (838) | 26 (660) | 19 | 1/2 | 550 (249) |
| DHB-360 | 42 (1067) | 36 (914) | 22 (559) | 6 (152) | 0.75 (19) | 39 (991) | 29 (737) | 22 | 3/4 | 700 (318) |
| DHB-480 | 56 (1422) | 48 (1219) | 27 (686) | 6 (152) | 0.75 (19) | 52 (1324) | 37 (940) | 30 | 1-1/2 | 1050 (476) |
| DHB-600 | 68 (1727) | 60 (1524) | 35 (889) | 8 (203) | 0.75 (19) | 64 (1626) | 43 (1092) | 37 | 1-1/2 | 1500 (680) |
| DHB-720 | 84 (2134) | 72(1829) | 39 (991) | 10 (254) | 0.75 (19) | 78 (1981) | 51 (1295) | 45 | 3 | 1950 (885) |
| DHB-840 | 96 (2438) | 84 (2134) | 43 (1092) | 10 (254) | 0.75 (19) | 90 (2286) | 57 (1448) | 51 | 5 | 2450 (1111) |
| DHB-960 | 108 (2743) | 96 (2438) | 46 (1168) | 12 (305) | 0.88 (22) | 102 (2591) | 63 (1600) | 58 | 5 | 3025 (1372) |
| DHB-1080 | 120 (3048) | 108 (2743) | 51 (1295) | 12 (305) | 0.88 (22) | 114 (2896) | 74 (1880) | 65 | 7-1/2 | 3520 (1597) |
| DHB-1200 | 132 (3353) | 120 (3048) | 55 (1397) | 12 (305) | 0.88 (22) | 126 (3200) | 80 (2032) | 72 | 7-1/2 | 4300 (1950) |
